Crown 3" - 10

Crown 3" - 10

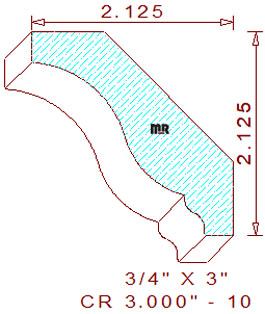

This fancy 3" - 10 crown mould measures 3.000" wide by .750" thickness. The elegant design begins with a 5/16" tall vertical line on top, connected to a large two-tangent radius cyma recta in the center, which transitions into a small cyma reversa with a 5/16" wide horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-1/8" tall and wide. Two high points in the detail were deliberately positioned on the same plane; our disciplined design features will assure excellent hold-down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.
Learn how to become more efficient while searching for over 15,550 mouldings in our state-of-the-art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.550
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.539
Top Cutter Head
Width: 3.000
Depth of Cut: 0.180
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$238.00
Not Needed
Total:
$528.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$253.00
Not Needed
Total:
$562.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$275.50
Not Needed
Total:
$613.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
