Crown 3" - 11

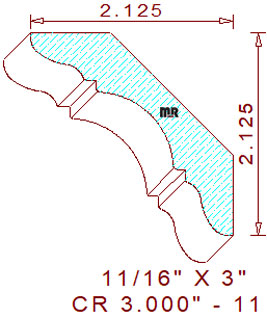

This beautiful 3" - 11 crown mould measures 3.000" wide by .687" thickness. The symmetrical profile is comprised of a 13/16" radius cove in the center, connected to a 1/8" wide by 1/8" deep notched fillet that transitions into a cyma reversa on top and cyma recta on the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-1/8" tall and wide. Two high points in the detail were intentionally positioned on the same plane; our disciplined design features will assure excellent hold-down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.
