Crown 3-1/16" - 8

Crown 3-1/16" - 8

Crown 3-1/16" - 8

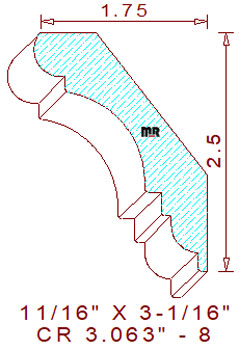

This ornate 3-1/16" - 8 crown mould measures 3.048" width by .687" thickness, permitting a 3-5/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial moulder. The graceful supporting profile contains a 9/32" half-circle joined to an 11/32" vertical fillet on the top left. The vertical line connects to a 15/16" radius cove in the center, joined to a 7/64" wide by 1/4" tall perpendicular notch and a 9/32" ovolo flanked by tiny fillets with a 7/64" flat line on the design's bottom right corner. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; in addition, they lock in the installed height at 2-1/2" tall with a 1-3/4" projection across the top.

Are you looking for that unique moulding to enhance the architectural style of your current project? Please send us a sketch; custom profile design is our specialty. Experience the elegant beauty we can create from your outlined idea concepts and our vast knowledge of the woodworking industry.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.461
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.621
Top Cutter Head
Width: 3.063
Depth of Cut: 0.351
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$161.75
$233.65
Not Needed
Total:
$557.15
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$171.25
$248.90
Not Needed
Total:
$591.40
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$180.75
$264.15
Not Needed
Total:
$625.65
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
