Crown 3-3/16" - 4

Crown 3-3/16" - 4

Crown 3-3/16" - 4

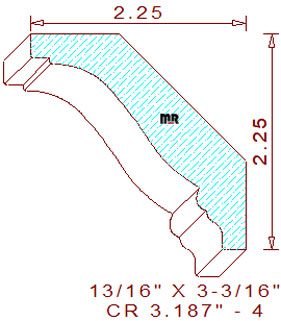

This stylish 3-3/16" - 4 crown mould measures 3.187" width by .812" thickness, permitting the pattern to be machined sprung (laying horizontally flat) using four-quarter lumber on an industrial moulder. The decorative terminating profile contains a 1/4" tall vertical line joined to a 1/16" tall by 13/64" broad perpendicular notch on the top left. Attached to a beautiful free-flowing four tangent radius cyma recta and a 1/4" quarter round convex arc, merged with a small ogee and a 1/4" horizontal line segment on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed, they also lock in the positioned height at 2-1/4" tall with a projection of 2-1/4" across the top.

We're delighted you found a beautiful profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial machinery and toolroom. If you are new to the industry, read some of our informational articles ; they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsmen for all our clients.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.653
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.653
Top Cutter Head
Width: 3.188
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
Not Needed
Not Needed
Total:
$299.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
Not Needed
Not Needed
Total:
$318.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
Not Needed
Not Needed
Total:
$337.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
