Crown Moulding 3-1/4" - 11

Crown Moulding 3-1/4" - 11

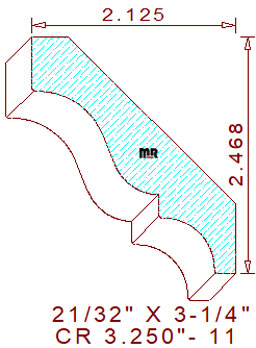

This standard crown moulding 3-1/4" - 11 measures 3.250" wide by .656" thickness, allowing the detail to be machined from four quarter lumber. The colonial design is one of the most common crown profiles in the moulding industry, the profile is composed of a 9/16" tall vertical line at the top, connected to a elegant two tangent radius cyma recta in the center, joined to a 1/4" vertical fillet with a 17/32" cove and a 7/32" wide horizontal line segment at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these dedicated back bevels set the installed height at 2-15/32" tall with a projection of 2-1/8" wide.

Review our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Three high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, as long as the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.250" / Depth of Cut = .480" (top knives.)

Thickness = .656" / Depth of Cut = .269" (right blades) & .514" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
