Crown 3-1/4" - 24

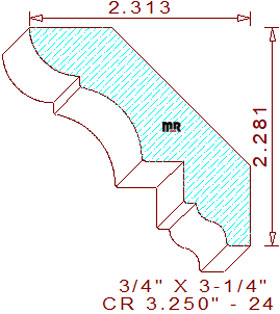

This fascinating 3-1/4" - 24 crown mould measures 3.248" width by .750" thickness permitting the use of four-quarter lumber for milling sprung (laying horizontally flat) on an industrial molder. The elegant supporting profile contains a 17/32" quarter round with a 1/8" vertical fillet on the top left. The short line connects to a 3/4" cove merged with a 7/16" by 7/16" perpendicular notch for inserting a piece of dentil or rope moulding. The lower portion consists of a two-tangent radius ogee flanked by a 1/8" horizontal fillet above and a 1/4" flat line on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-9/32" tall with a projection of 2-5/16" across the top.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,600 patterns in our search by size moulding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.
