Crown 3-1/4" - 30
Crown 3-1/4" - 30

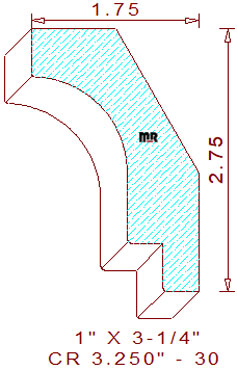

This concave 3-1/4" - 30 crown mould measures 3.257" wide by one-inch thickness, allowing the detail to be milled sprung (horizontally flat) out of four-quarter lumber. The embellishing profile is composed of a 1/2" tall vertical line at the top, joined to a one-inch radius cavetto tangent off of a 3/4" tall vertical line segment in the middle, attached to a 1/2" tall by 3/8" wide notch with a 3/8" broad flat line at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees, these specific back bevels set the installed height at 2-3/4" tall with a projection of 1-3/4" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.764
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.624
Top Cutter Head
Width: 3.250
Depth of Cut: 0.501
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$251.00
Not Needed
Total:
$593.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$267.00
Not Needed
Total:
$628.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$291.00
Not Needed
Total:
$681.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
