Crown 3-1/4" - 37
Crown 3-1/4" - 37

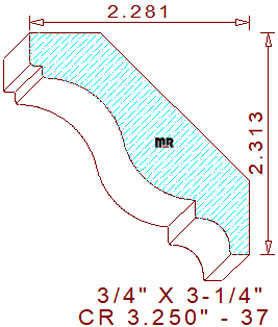

This customary 3-1/4" - 37 crown mould measures 3.250" width by .750" thickness enabling the use of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The ordinary terminating profile contains an 11/32" tall vertical line segment joined to a 1/8" by 1/8" perpendicular notch on the top left. The notch connects to a free-flowing two-tangent radius cyma recta in the center with a 5/16" cove flanked by a 3/16" vertical & horizontal line on the design's bottom right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-5/16" tall with a projection of 2-9/32" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.522
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Top Cutter Head
Width: 3.250
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
Not Needed
Not Needed
Total:
$290.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
Not Needed
Not Needed
Total:
$309.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
Not Needed
Not Needed
Total:
$337.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
