Crown 3-1/4" - 5

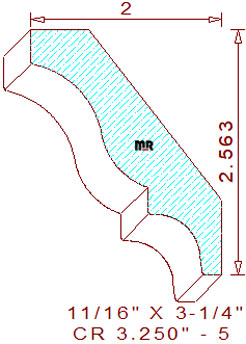

This traditional 3-1/4" - 5 crown mould measures 3.250" width by .687" thickness enabling the use of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial molder. The standard terminating profile contains a 23/64" tall vertical line segment on the top left. The fillet connects to a free-flowing two-tangent radius cyma recta in the center merged to a 15/32" cove, flanked by a 9/32" vertical fillet above and a 7/32" flat line on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-9/16" tall with a projection of two inches across the top.

Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig molder/grinder field service technician. From just an idea in one's mind to reality in their beautiful home, our custom profiles reflect your imagination's creative style. Let us help you complement the architectural decor of any room with any one or more of our attractive molding patterns.
