Crown Moulding 3-9/32" - 4

Crown Moulding 3-9/32" - 4

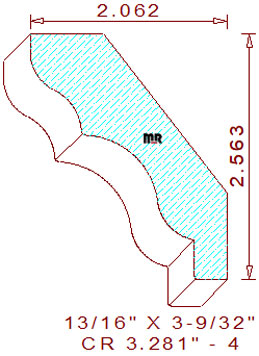

This beautiful cyma crown moulding 3-9/32" - 4 measures 3.289" wide by .812" thickness, enabling the pattern to be milled from four quarter lumber. The duel cyma profile is composed of a two tangent radius cyma reversa on the top, connected to a double tangent radius cyma recta in the middle, joined to a 13/32" tall by 11/32" wide squared lines at the bottom of the detail. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-9/16" tall with a projection of 2-1/16" wide.

Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially provided the machine is properly calibrated. Three high points in the detail were deliberately positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, as long as the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.289" / Depth of Cut = .000" (top knives.)

Thickness = .812" / Depth of Cut = .472" (right blades) & .714" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
