Crown 3-5/16" - 7

Crown 3-5/16" - 7

Crown 3-5/16" - 7

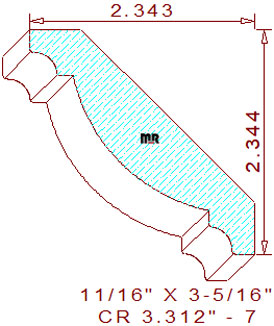

This symmetrical 3-5/16" - 7 crown mould measures 3.314" width by .687" thickness, requiring a 3-9/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. The striking terminating profile comprises a 1-53/64" convex semicircle in the center. The top left and bottom right corners retain a 15/64' cove flanked by small vertical and horizontal line segments. The spring angles are at forty-five degrees; the dedicated back bevels keep the face sides of the pattern parallel to the wall and ceiling. These specific angle positions lock in the installed height at 2-11/32" tall with a 2-11/32" projection across the top.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 3.312
Depth of Cut: 0.404
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$246.10
Not Needed
Total:
$526.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$262.35
Not Needed
Total:
$561.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$278.60
Not Needed
Total:
$597.10
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
