Crown 3-3/8" - 20

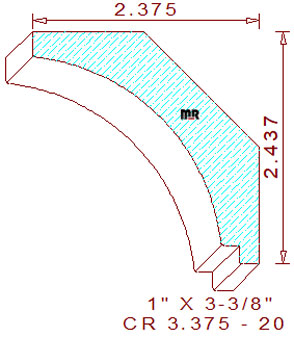

This visually appealing 3-3/8" - 20 crown mould measures 3.403" wide by 1.000" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of five-quarter lumber. The terminating concave profile is composed of a 17/64" tall vertical line segment on the top left, attached to a 2-13/64" cove in the center with a 3/16" wide by 3/16" tall perpendicular notch and a 7/32" wide horizontal line at the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 2-7/16" tall with a projection of 2-3/8" wide.

We provide the cut steel size on all our template & knife designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for production, this is just one more example of our enthusiasm for the overall success of your woodworking business.
