Crown 3-15/32" - 3
Crown 3-15/32" - 3

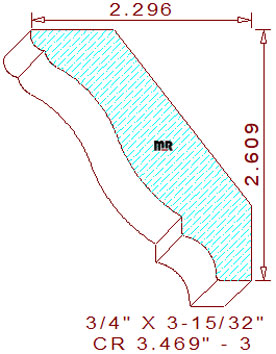

This designer 3-15/32" - 3 crown mould measures 3.475" wide by .750" thickness, permitting the detail to be machined out of four-quarter lumber. The beautifully elegant profile is composed of an 11/64" quarter round bead on the top left, attached to a three tangent radius cyma recta with a 3/16" tall vertical line segment in the center, joined to a 27/64" cove with a 3/8" broad horizontal line on the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-39/64" tall with a projection of 2-19/64" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.679
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.477
Top Cutter Head
Width: 3.469
Depth of Cut: 0.366
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$262.39
Not Needed
Total:
$604.89
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$279.26
Not Needed
Total:
$640.76
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$304.58
Not Needed
Total:
$694.58
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
