Crown 3-1/2" - 39
Crown 3-1/2" - 39

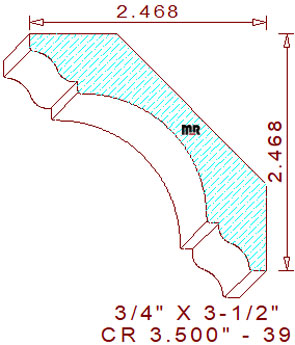

This beautiful 3-1/2" - 39 crown mould measures 3.500" wide by .750" thickness, enabling the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The elegant profile is composed of a 19/64" radius cove in the center, flanked by a symmetrical section consisting of a 1/8" line segment joined to a two tangent radius ogee with an 11/64" line segment on both the top and bottom. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 2-15/32" tall with a projection of 2-15/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.640
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.640
Top Cutter Head
Width: 3.500
Depth of Cut: 0.440
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$264.00
Not Needed
Total:
$573.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$281.00
Not Needed
Total:
$609.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$156.75
(Template not needed)
$306.50
Not Needed
Total:
$663.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
