Crown 3-1/2" - 4
Crown 3-1/2" - 4

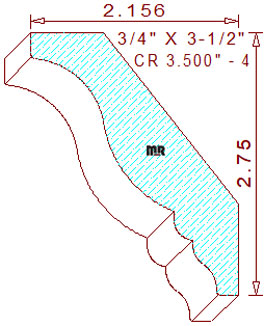

This attractive 3-1/2" - 4 crown mould measures 3.500" wide by .750" thickness. The beautiful terminating profile comprises two tangent radiuses creating cyma recta in the center, attached to a 9/32" vertical line on top. The lower portion consists of a 9/32" radius arc, joined to an ogee with a 15/64" wide horizontal line at the bottom. The spring angles are fixed at
thirty-eight and
fifty-two degrees, these devoted back bevels set the installed height at 2-3/4" tall with a projection of 2-5/32" wide.
Moulding Knife Calculator
Grade of Steel
Subtotal
+ Custom Moulding Template
Total (Template + 2 Knives)
V2+RW
chrome coated 72rc face, best seller,
great tool life
$0.00
$0.00
$0.00
Black Nitride
black nitride case hardened
72rc, medium size runs
$0.00
$0.00
$0.00
Endurance
chrome and diamond coated, longest
tool life
$0.00
$0.00
$0.00
Note: If you’re experiencing trouble printing to Full Scale, Go to File,
Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.598
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.585
Top Cutter Head
Width: 3.500
Depth of Cut: 0.264
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
