Crown 3-17/32"

Crown 3-17/32"

Crown 3-17/32"

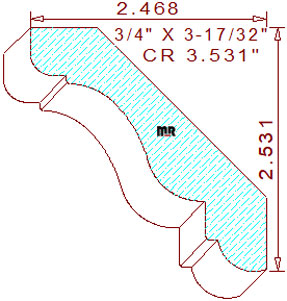

This stylish 3-17/32" crown mould measures 3.531" wide by .750" thickness, enabling the detail to be milled sprung (laying horizontally flat) out of four-quarter lumber. The beautiful profile is composed of a 1/4" radius quarter round arc with a 3/32" vertical line segment on the top left, attached to a graceful three tangent radius cyma recta in the center, joined to a 13/32" tall by 1/8" wide perpendicular lines with a 3/8" radius semicircle on the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2-17/32" tall with a projection of 2-15/32" wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.494
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.529
Top Cutter Head
Width: 3.531
Depth of Cut: 0.346
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$265.61
Not Needed
Total:
$555.61
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$282.74
Not Needed
Total:
$591.74
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$142.50
(Template not needed)
$299.86
Not Needed
Total:
$627.86
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
