Crown 3-17/32" - 5
Crown 3-17/32" - 5

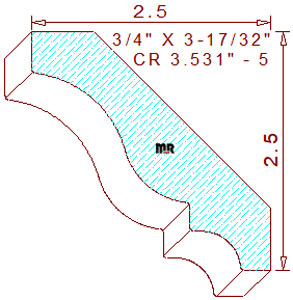

This standard 3-17/32" - 5 crown mould measures 3.531" wide by .750" thickness, enabling the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The traditional profile is composed of a 7/16" tall vertical line at the top left, connected to an elegant two tangent radius cyma recta with a 19/64" tall line segment in the center, attached to a 13/32" cove with a 5/16" wide line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at the same dimensions of 2-1/2" tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.454
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.454
Top Cutter Head
Width: 3.531
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$275.17
Not Needed
Total:
$575.67
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$292.30
Not Needed
Total:
$611.80
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$317.98
Not Needed
Total:
$665.98
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
