Crown 3-19/32" - 3
Crown 3-19/32" - 3

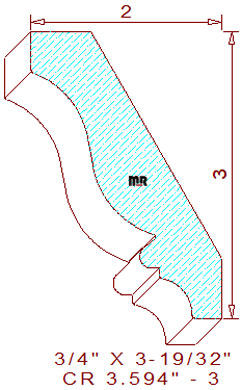

This stylish 3-19/32" - 3 crown mould measures 3.598" wide by .750" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The elegant terminating profile is composed of a 7/16" tall vertical line on the top left, attached to a 29/32" concave semicircle tangent to a 61/64" radius arc creating the cyma recta in the center, joined to a teardrop-shaped bead flanked by small line segments with a 3/8" cove and a 5/16" broad segment at the bottom of the design. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 3" tall with a projection of 2" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.545
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.313
Top Cutter Head
Width: 3.594
Depth of Cut: 0.530
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$268.89
Not Needed
Total:
$601.89
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$286.26
Not Needed
Total:
$638.26
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$312.33
Not Needed
Total:
$692.83
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
