Crown 3-5/8" - 19
Crown 3-5/8" - 19

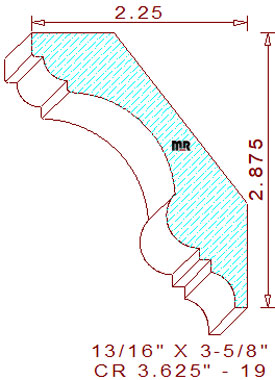

This fashionable 3-5/8" - 19 crown mould measures 3.651" wide by .812" thickness, enabling the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The elegant profile is composed of a 1/4" tall vertical line that connects to a 1/4" radius ovolo flanked by 1/8" tall and wide line segments on top, attached to a 1-1/8" cove that merges with a 9/16" tall semicircle in the center, the lower portion consists of a 1/8" tall vertical line attached to a 1/8" square notch with a 5/16" cavetto and a 1/8" broad segment on the bottom of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 2-7/8" tall with a projection of 2-1/4" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.675
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.672
Top Cutter Head
Width: 3.625
Depth of Cut: 0.481
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$270.50
Not Needed
Total:
$622.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$288.00
Not Needed
Total:
$659.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$314.25
Not Needed
Total:
$713.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
