Crown 3-11/16" - 2
Crown 3-11/16" - 2

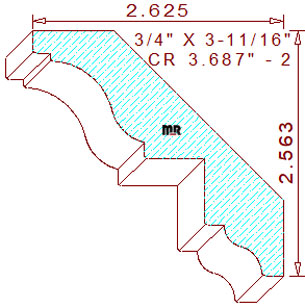

This beautiful 3-11/16" - 2 crown mould measures 3.669" width by .750" thickness, permitting the pattern to utilize four-quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The gorgeous terminating profile contains a 15/64" tall by 3/16" broad perpendicular lines merged with a two tangent radius cyma recta bordered by vertical line segments on the top left. The center retains a 5/8" wide by 11/16" tall notch for inserting dentil or rope mould. The lower section consists of two tangent-radius ogees flanked by tiny horizontal line segments on the design's bottom-right side. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 2-9/16" tall with a projection of 2-5/8" across the top.
Utilize any of our user-friendly molding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig field service technician.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.601
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.557
Top Cutter Head
Width: 3.688
Depth of Cut: 0.469
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.50
$123.50
(Template not needed)
$274.78
Not Needed
Total:
$565.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$177.00
$133.00
(Template not needed)
$292.53
Not Needed
Total:
$602.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.25
$147.25
(Template not needed)
$319.16
Not Needed
Total:
$657.66
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
