Crown 3-23/32" - 1

Crown 3-23/32" - 1

Crown 3-23/32" - 1

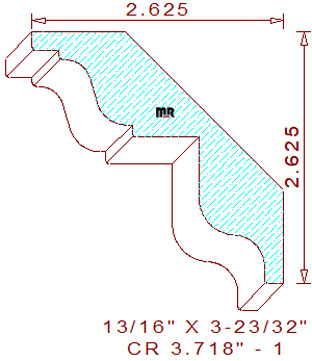

This lovely 3-23/32" - 1 crown mould measures 3.718" wide by .813" thickness. The elegant profile is comprised of a notched fillet in the upper portion, connected to an elevation changing cyma recta with a small vertical line, attached to an 11/16" wide by 5/8" tall notch for installing rope or dentil molding, this area transitions into a two tangent radius cyma reversa with a 13/64" broad horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 2-5/8" tall and wide.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.687
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.687
Top Cutter Head
Width: 3.719
Depth of Cut: 0.580
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$266.45
Not Needed
Total:
$565.95
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$284.33
Not Needed
Total:
$602.83
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$302.20
Not Needed
Total:
$639.70
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
