Crown 3-23/32" - 3
Crown 3-23/32" - 3

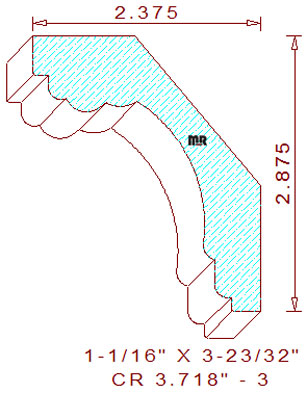

This beautiful 3-23/32" - 3 crown mould measures 3.729" wide by 1.062" thickness. The classy terminating profile is comprised of a 1-17/32" radius cavetto in the center, attached to three half-round circles with a 21/64" tall by 5/32" wide fillet on top, the bottom portion of the design consists of a 5/32" radius attached to the cove, with two radius edge fillets and a 5/16" wide horizontal fillet at the very bottom of the pattern. We offer another, slightly larger profile of a similar shape and size for your review and consideration. The spring angles are fixed at forty and fifty degree which are included in the template ready downloadable dxf file, these specific back bevels set the installed height at 2-7/8" tall with a projection of 2-3/8" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.814
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.843
Top Cutter Head
Width: 3.719
Depth of Cut: 0.713
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$293.26
Not Needed
Total:
$645.26
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$311.14
Not Needed
Total:
$682.14
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$337.95
Not Needed
Total:
$737.45
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
