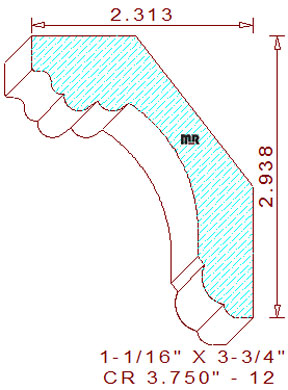

This Fashionable Crown Moulding 3-3/4" - 12 measures 3.750" wide by 1.062" thickness with a depth of cut of .669" on the right vertical blades, 1.085" on the left vertical cutters, and a .665" depth of cut on the top horizontal set of moulding knives.
The striking profile is comprised of a 1-37/64" radius cavetto in the center, attached to two half round circles and a cyma recta with a 3/8" tall vertical fillet on top, the bottom portion of the design consists of 7/64" wide beveled fillet connected to a 5/16" radius half round circle and a 5/32" radius quarter round circle at the bottom of the pattern. We also have a well-known, tad smaller profile of a similar size and shape for your review and consideration. The spring angles are fixed at thirty-eight and fifty-two degree, search our bevels category by these degree to find two sets of back bevel cutters appropriate for this stylish crown moulding design, these specific back bevels set the installed height at 2-15/16" tall with a projection of 2-5/16" wide. Two high points in the detail were intentionally positioned on the same level plane, this specific design feature will assure excellent hold down conditions while milling the detail on an industrial moulder, providing the moulder pressure shoe is properly set parallel to the moulder bed plates.
We offer thousands of inspirational architectural mouldings that will shape the contour of every exquisite room in your beautiful home. Download all our free moulding knife dxf profiles, see how easy the services we provide can increase productivity and reduce production cost.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
