Crown 3-13/16" - 2
Crown 3-13/16" - 2

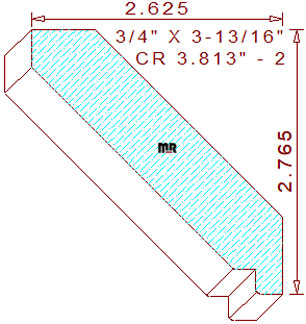

This shaker style 3-13/16" - 2 crown mould measures 3.813" wide by .750" thickness, allowing the detail to be machined from four-quarter lumber. The beveled profile is composed of a 25/64" tall vertical line on top, attached to a three inch long forty-five-degree beveled line in the center, connected to a squared notch with a 19/64" horizontal line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 2-49/64" tall with a projection of 2-5/8" wide. We have a larger version of this detail for your review and consideration, crown 5.656" - 17
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.569
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.472
Top Cutter Head
Width: 3.812
Depth of Cut: 0.371
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$280.22
Not Needed
Total:
$570.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$298.47
Not Needed
Total:
$607.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$325.84
Not Needed
Total:
$663.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
