Crown 3-15/16" - 4
Crown 3-15/16" - 4

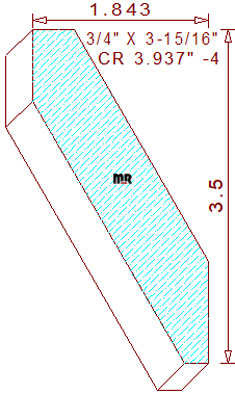

This 3-15/16" - 4 shaker style crown mould measures 3.950" wide by .750" thickness, enabling the detail to be machined from four-quarter lumber. The simplistic beveled profile is composed of a 3/4" vertical line on top, joined to a 3-11/64" wide sixty degree angled line with a 1/4" horizontal line segment at the bottom of the pattern. The spring angles are fixed at thirty and sixty degrees, these dedicated back cuts set the installed height at 3-1/2" tall with a projection of 1-27/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.533
Top Cutter Head
Width: 3.937
Depth of Cut: 0.440
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$286.72
Not Needed
Total:
$619.72
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$305.47
Not Needed
Total:
$657.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$333.59
Not Needed
Total:
$714.09
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
