Crown 4" - 30
Crown 4" - 30

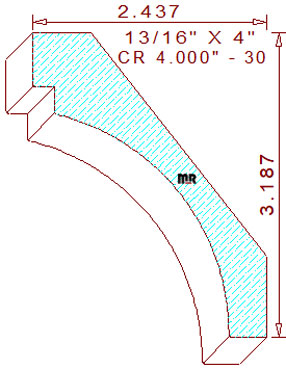

This concave 4.000" - 30 crown mould measures 4.012" width by .812" thickness, permitting the use of a 4-1/4" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial-grade molder. The beautiful terminating profile contains a 9/16" tall vertical fillet on the top left. The line connects to a 7/32" wide by 9/32" tall perpendicular notch merged to a 2-23/64" cove in the center with a 25/64" broad flat line on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-3/16" tall with a projection of 2-7/16" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.479
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.521
Top Cutter Head
Width: 4.000
Depth of Cut: 0.510
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$290.00
Not Needed
Total:
$623.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$309.00
Not Needed
Total:
$661.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$337.50
Not Needed
Total:
$718.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
