Crown Moulding 4" - 53

Crown Moulding 4" - 53

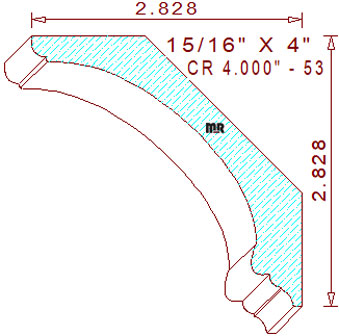

This gorgeous crown/cove moulding 4" - 53 measures 4.000" wide by .937" thickness. The asymmetrical concave profile is comprised of three tangent radius arcs in the center, attached to a small vertical line and a 9/64" quarter round circle on top, the lower section consists of a teardrop shaped bead that transitions into a 1/8" quarter round with a small vertical line joined to a 3/16" cove with a 3/32" wide horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at a identical dimension 2-53/64" tall and wide.Three high points in the detail were deliberately positioned on the same plane, this specialized design feature will assure excellent hold down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.

We provide the cut steel size on all our template designs, this important information allows you to purchase the correct size width of knife steel before you start grinding procedures for moulding production. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.000" / Depth of Cut = .608" (top knives).

Thickness = .937" / Depth of Cut = .838" (right blades) & .838" (left knives).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
