Crown 4-3/16"- 4
Crown 4-3/16"- 4

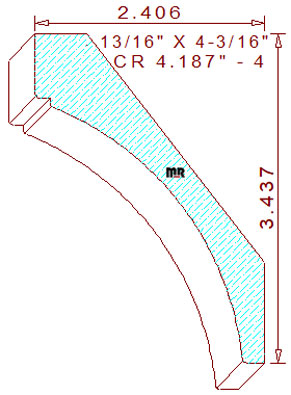

This 4-3/16" - 4 cove-style crown mould measures 4.190" width by .812" thickness, allowing a 4-7/16" wide blank of four-quarter lumber for milling sprung (laying horizontally flat) on a commercial moulder. This elegant terminating profile comprises a 43/64" vertical line segment on the top left. The line connects to a 5/32" wide by 3/32" tall perpendicular notch attached to a 3-3/16" radius cove in the center with a 15/64" horizontal line segment on the design's bottom right side. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-7/16" tall with a 2-13/32" projection across the top.
.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.361
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.581
Top Cutter Head
Width: 4.188
Depth of Cut: 0.496
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$299.78
Not Needed
Total:
$632.78
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$319.53
Not Needed
Total:
$671.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$349.16
Not Needed
Total:
$729.66
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
