Crown Moulding 4-1/4" - 5

Crown Moulding 4-1/4" - 5

This timeless classic crown moulding 4-1/4" - 5 measures 4.250" wide by .750" thickness. The ageless design is comprised of a 1/2" tall vertical line at the top, connected to a 1-1/2" concave cove tangent off of a 1" radius arc, these semicircles create the cyma recta in the center, joined to a 5/16" vertical line attached to a 9/16" cove with a 13/32" wide horizontal line at the bottom of the pattern. This stylish profile is the most widely used pattern in the industry, we offer hundreds of different sizes, simply enter the width size in the boxes provided to find the size that best suits your woodworking project.

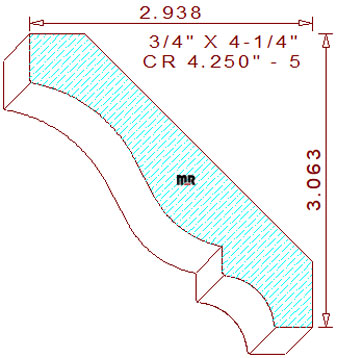

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-1/16" tall with a projection of 2-15/16" wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Three high points in the detail were deliberately positioned on the same plane, our specialized design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .437" (top knives).

Thickness = .750" / Depth of Cut = .403" (right blades) & .483" (left cutters

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
