Crown Moulding 4-1/4" - 67

Crown Moulding 4-1/4" - 67

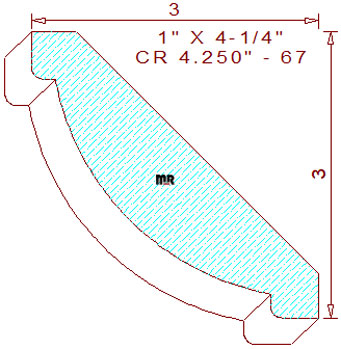

This ovolo shaped crown moulding 4-1/4" - 67 measures 4.250" wide by 1.000" thickness, requiring at least five quarter lumber to mill this pattern on an industrial style moulder. The symmetrical semicircular profile is comprised of a 2-13/16" radius arc in the center, attached to a 1/4" wide by 1/2" tall squared lines with a 1/8" eased edge on the top, and a 1/4" tall by 1/2" wide squared horizontal line also with a 1/8" rounded edge at the bottom of the lovely design.

The spring angles are fixed at forty-five degrees, these dedicated back bevels set the installed height and projection at an identical dimension of 3" tall and wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. You may want to consider using a felt lined pressure shoe while milling this detail, this will eliminate any unsightly burnish mark that may be caused by the metal hold down shoe.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.250" / Depth of Cut = .732" (top knives.)

Thickness = 1.000" / Depth of Cut = .330" (right blades) & .330" (left cutters.)

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
