Crown 4-1/4" - 69
Crown 4-1/4" - 69

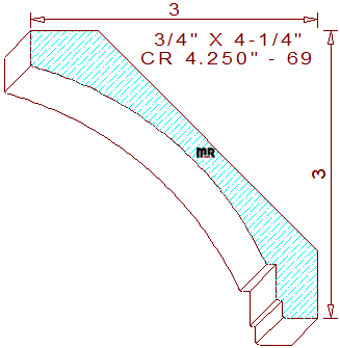

This stylish 4-1/4" - 69 crown mould measures 4.250" wide by .750" thickness, permitting the detail to be machined sprung (laying horizontally flat) out of four-quarter lumber. The concave profile is composed of a 3/8" tall vertical line segment on the top left, connected to a 3-13/16" radius cove in the center, joined to a 3/8" tall by 3/32" wide stepped notch that merges with a 3/16" tall by 1/16" wide perpendicular lines with a 3/8" broad horizontal line segment on the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at the identical dimension of three inches tall and wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.496
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.496
Top Cutter Head
Width: 4.250
Depth of Cut: 0.498
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$303.00
Not Needed
Total:
$593.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$323.00
Not Needed
Total:
$632.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$353.00
Not Needed
Total:
$690.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
