Crown 4-3/8" - 18
Crown 4-3/8" - 18

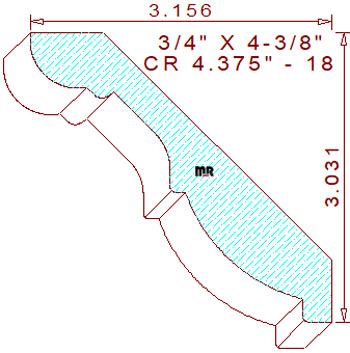

This beautiful 4-3/8" - 18 crown mould measures 4.375" width by .750" thickness, permitting the pattern to utilize four-quarter lumber for machining sprung (laying horizontally flat) on an industrial-grade molder. The gorgeous supporting profile contains a 1/2" convex arc with a 9/32" pointed half bead on the top left. The partial round connects to a 1-1/16" tall congee derived from a 1/2" radius cove in the center, joined to a 5/32" wide fillet attached to a 1/34" convex arc with a 15/64" tall by 5/16' broad perpendicular lines on the bottom right side of the design. The set spring angles are at forty-five degrees; these dedicated back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-1/32" tall with a projection of 3-5/32" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.455
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.544
Top Cutter Head
Width: 4.375
Depth of Cut: 0.389
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$309.50
Not Needed
Total:
$599.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$330.00
Not Needed
Total:
$639.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$360.75
Not Needed
Total:
$698.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
