Crown 4-7/16" - 7

Crown 4-7/16" - 7

Crown 4-7/16" - 7

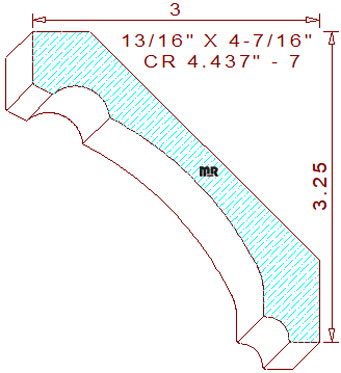

This concave 4-7/16" - 7 crown mould measures 4.420" wide by .812" thickness. The cove-shaped profile is comprised of a two tangent radius arc in the center, attached to a 23/64" radius cove in the upper portion with a slight angle and 9/16" tall vertical line on top, the lower portion consists of a smaller cove with a 5/16" broad line at the bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-1/4" tall with a projection of 3" wide. Three high points in the detail were deliberately positioned on the same plane. This specialized design feature will assure excellent hold-down conditions while milling this detail, providing the pressure shoe is parallel to the machine's bed plates.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.428
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.605
Top Cutter Head
Width: 4.437
Depth of Cut: 0.486
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.75
$118.75
(Template not needed)
$302.35
Not Needed
Total:
$582.85
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$171.25
$128.25
(Template not needed)
$323.10
Not Needed
Total:
$622.60
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.75
$137.75
(Template not needed)
$343.85
Not Needed
Total:
$662.35
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
