Crown 4-1/2" - 12
Crown 4-1/2" - 12

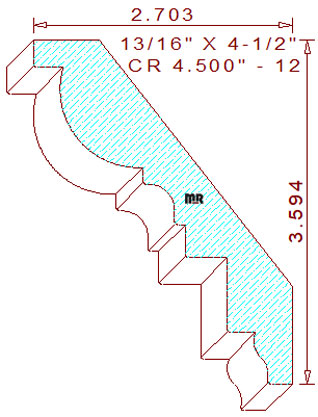

This distinctive 4-1/2" - 12 crown mould measures 4.500" wide by .812" thick. The excellent profile comprises an ovolo attached to a 9/32" tall vertical line at the top. The center of the design consists of a 17/64" radius congee flanked by horizontal and vertical lines, attached to a 25/32" tall, by 7/16" wide, notched area for dentil or rope mould. The bottom of the pattern retains a small ogee bordered by horizontal lines. The spring angles are fixed at thirty-eight and fifty-two degrees, these specific back bevels set the installed height at 3-19/32" tall, with a projection of 2-45/64" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.541
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.624
Top Cutter Head
Width: 4.500
Depth of Cut: 0.465
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$166.50
$316.00
Not Needed
Total:
$649.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$337.00
Not Needed
Total:
$689.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$190.25
$368.50
Not Needed
Total:
$749.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
