Crown 4-1/2" - 15
Crown 4-1/2" - 15

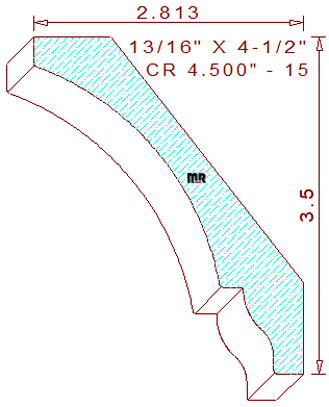

This concave 4-1/2" - 15 crown mould measures 4.500" wide by .812" thickness, allowing the pattern to be machined sprung (laying horizontally flat) out of four-quarter lumber. The attractive terminating profile is composed of a 5/16" tall vertical line segment on the top left, connected to a three-inch radius cove in the center, attached to a 1/4" broad segment merged with a 9/16" convex arc tangent to a 3/8" concave semicircle creating the ogee with a 5/16" wide flat area on the bottom right side of the design. The spring angles are fixed at thirty-eight and fifty-two degrees, these particular back bevels keep the inner profile parallel to the wall and ceiling as well as set the installed height at 3-1/2" tall with a projection of 2-13/16" across the top.
Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking, and a former Weinig field service technician.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.639
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.584
Top Cutter Head
Width: 4.500
Depth of Cut: 0.354
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$166.50
$316.00
Not Needed
Total:
$658.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$176.00
$337.00
Not Needed
Total:
$698.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$190.25
$368.50
Not Needed
Total:
$758.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
