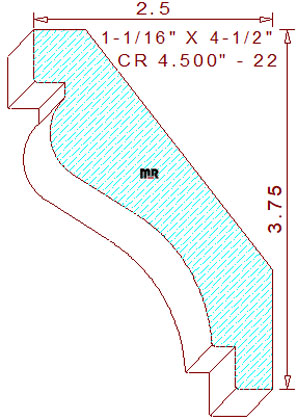

This Bulky Crown Moulding 4-1/2" - 22 measures 4.500" wide by 1.062" thickness, the profile is comprised of a cyma reversa in the middle flanked by a sunk and squared fillet at the top with a notched fillet positioned at the bottom. The spring angles are fixed at thirty-eight and fifty-two degrees which sets the installed height at 3-3/4" tall with a projection of 2-1/2" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
