Crown 4-1/2" - 3
Crown 4-1/2" - 3

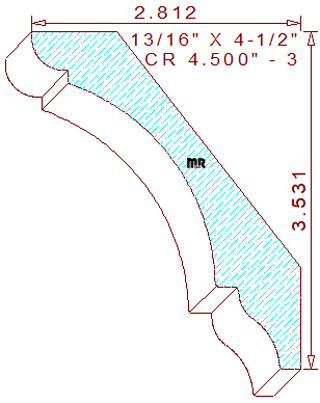

This beautiful 4-1/2" - 3 crown mould measures 4.514" width by .812" thickness, allowing the use of four-quarter lumber for machining sprung (laying horizontally flat) on a commercial-grade molder. The elegant supporting pattern contains an 11/32" quarter round bead joined to a 5/32" tall vertical line segment on the top left. The center retains a 2-17/64" cove merged with a 17/64" horizontal fillet attached to a two tangent radius ogee with a 21/64" flat line on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the exposed face side of the profile parallel to the wall and ceiling when installed, and set the oriented height at 3-17/32" tall with a projection of 2-13/16" across the top.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.700
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.658
Top Cutter Head
Width: 4.500
Depth of Cut: 0.451
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$176.00
$316.00
Not Needed
Total:
$668.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$185.50
$185.50
$337.00
Not Needed
Total:
$708.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.75
$199.75
$368.50
Not Needed
Total:
$768.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
