Crown Moulding 4-19/32" - 2

Crown Moulding 4-19/32" - 2

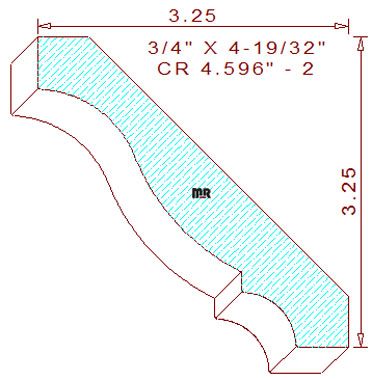

This standard colonial crown moulding 4-19/32" - 2 measures 4.596" wide by .750" thickness, allowing the detail to be milled from four quarter lumber. The classic terminating profile is comprised of a 9/16" vertical line on top, connected to an elongated two tangent radius cyma recta and a 7/32" tall line segment below, attached to a 9/16" cavetto with a 9/16" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an equal dimension of 3-1/4" tall and wide.

Review some of our helpful moulder and knife grinding articles, they will assist you in many aspects of machine set up and knife grinding procedures. These commentaries were written to help you be more familiar with the machinery, while making your job a little easier in the process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.596" / Depth of Cut = .467" (top knives.)

Thickness = .750" / Depth of Cut = .376" (right blades) & .376" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
