Crown 4-5/8" - 1

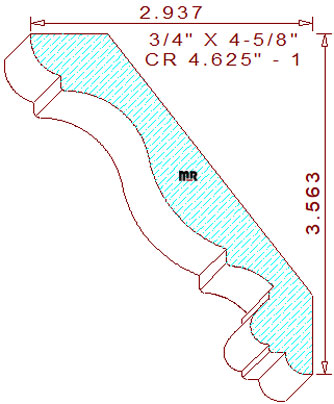

This stunning 4-5/8" - 1 crown mould measure 4.616" width by .750" thickness, requiring 4-7/8" wide blanks of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial moulder. The intriguing supporting profile contains a 13/32" quarter-round convex arc joined to a 5/32" tall vertical fillet on the top left. The straight line connects to a graceful two-tangent radius cyma recta with an additional 5/32" fillet in the center. The middle gets joined to a 21/32" concave semicircle merged with a teardrop-shaped bead, bordered by small line segments with a horizontal flat and a 15/64" quarter circle on the bottom right side of the design. The fixed spring angles are set at thirty-eight and fifty-two degrees; these particular back bevels keep the face side of the profile parallel to the wall and ceiling when installed; they also lock in the positioned height at 3-9/16" tall with a projection of 2-15/16" across the top.
