Crown 4-5/8" - 14
Crown 4-5/8" - 14

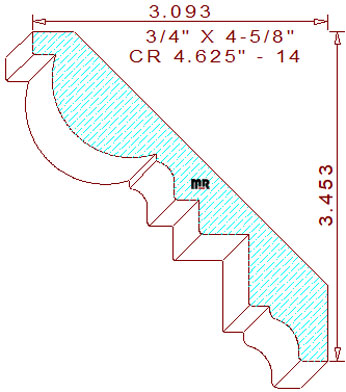

This elaborate 4-5/8" - 14 crown mould measures 4.625" in width by .750" thickness, enabling 4-7/8" wide blanks of four-quarter lumber for machining sprung (laying horizontally flat) on an industrial molder. The ornate terminating profile composes a 1/4" tall and wide squared lines at the top left. It is connected to a 1-15/32" tall half-round arc joined to a 13/64" congee flanked by small line segments merged with a series of elevation changing steps that are used for dentil or rope moulding. The lower portion consists of a 21/64" cove bordered by a 7/32" broad line on top and a 5/16" flat section at the bottom right corner. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-29/64" tall with a projection of 3-3/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.306
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.562
Top Cutter Head
Width: 4.625
Depth of Cut: 0.545
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$322.50
Not Needed
Total:
$612.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$344.00
Not Needed
Total:
$653.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$376.25
Not Needed
Total:
$713.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
