Crown 4-5/8" - 21
Crown 4-5/8" - 21

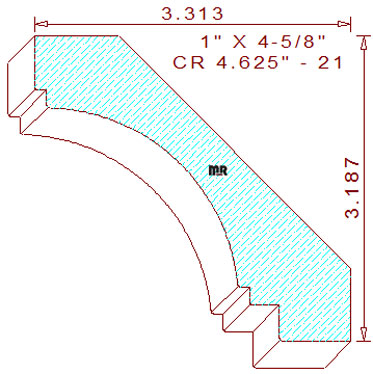

This beautiful 4-5/8" - 21 crown mould measures 4.596" wide by 1.000" thickness. The innovative profile is comprised of a 2-1/32" radius cove in the center, attached to a 1/8" wide by 3/16" tall, notched fillet joined to a 9/16" tall vertical fillet at the top. The lower portion of the design consists of a 1/8" wide by 3/16" high notched fillet, connected to a 5/16" wide by 3/8" tall, notched fillet with a 3/4" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees. Search our bevels category by this degree to find back bevel cutters appropriate for this crown design; these specific back bevels set the installed height at 3-3/16" tall with a projection of 3-5/16" wide. We have a larger version of this style crown mould available for your review and consideration located here.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.937
Depth of Cut: 0.937
Left Cutter Head
Thickness: 0.937
Depth of Cut: 0.872
Top Cutter Head
Width: 4.625
Depth of Cut: 0.595
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$322.50
Not Needed
Total:
$604.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
$148.00
$344.00
Not Needed
Total:
$640.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$158.50
$158.50
$376.25
Not Needed
Total:
$693.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
