Crown Moulding 5-3/4" - 2

Crown Moulding 5-3/4" - 2

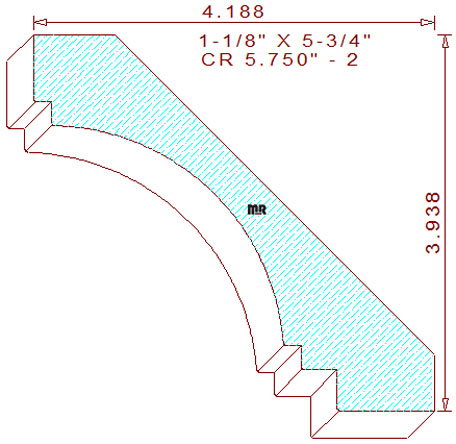

This Crown Moulding 5-3/4" - 2 measures 5.750" wide by 1.125" thickness, with a .600" depth of cut on the right vertical blades, .419" on the left vertical cutters, and a .779" depth of cut on the top horizontal set of moulding knives.

The stylish profile is comprised of a 2-29/64" radius cove in the center, attached to a 3/16" wide by 1/4" tall notched fillet and a 45/64" tall vertical fillet on top. The lower portion of the design consists of a 3/16" wide by 1/4" tall notched fillet, connected to a 3/8" wide by 7/16" tall notched fillet with a 1-1/32" wide horizontal fillet at the bottom of the pattern. The spring angles are fixed at forty-five degrees, search our bevels category by this degree to find back bevel cutters appropriate for this crown moulding design, these specific back bevels set the installed height at 3-15/16" tall with a projection of 4-3/16" wide. We have a smaller version of this same style crown moulding available for your review and rumination located here.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Weather you own a recently built house or older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your beautifully elegant home.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
