Crown Moulding 4-5/8" - 3

Crown Moulding 4-5/8" - 3

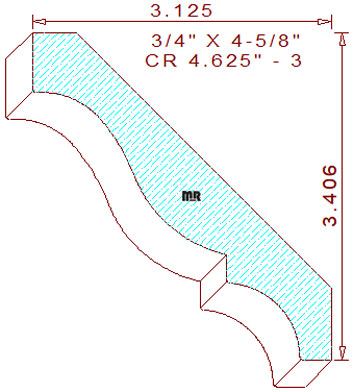

This standard crown molding 4-5/8" - 3 measures 4.625" wide by .781" thickness. The classic non supporting profile is comprised of a three tangent radius cyma recta flanked by a 5/8" vertical line on top and a 19/64" tall fillet below, attached to a 25/32" radius cove with an 11/32" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-13/32" tall with a projection of 3-1/8" wide. Two high points in the detail were intentionally positioned on the same plane, our disciplined design features will assure excellent hold down conditions while milling, providing the pressure shoe is parallel to the machine's bed plates.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 4.625" / Depth of Cut = .516" (top knives).

Thickness = .750" / Depth of Cut = .324" (right blades) & .529" (left knives), the same template can be used to make both the left and right set of blades.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
