Crown 4-11/16" - 3
Crown 4-11/16" - 3

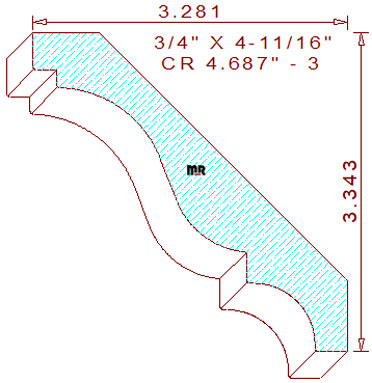

This notched 4-11/16" - 3 colonial crown mould measures 4.687" wide by .750" thickness, allowing the detail to be milled sprung (horizontally flat) from four-quarter lumber. The classic old world profile is composed of a 25/64" tall vertical line joined to a 1/4" wide by 3/16" tall notch at the top, connected to a two tangent radius cyma recta in the center, attached to a 21/64" tall line segment with a 41/64" cove and a 11/32" wide horizontal line at the bottom of the pattern. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-11/32" tall with a projection of 3-9/32" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.486
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.526
Top Cutter Head
Width: 0.368
Depth of Cut: 0.368
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.50
$123.50
(Template not needed)
$134.00
Not Needed
Total:
$424.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$176.00
$133.00
(Template not needed)
$141.00
Not Needed
Total:
$450.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$190.25
$147.25
(Template not needed)
$151.50
Not Needed
Total:
$489.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
