Crown 4-3/4" - 22

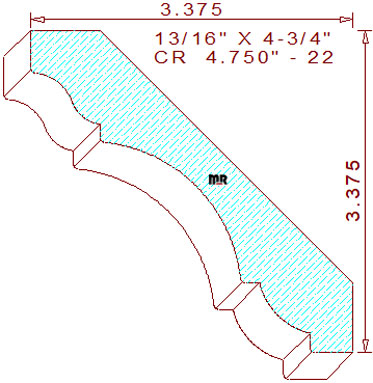

This decorative 4-3/4" - 22 crown mould measures 4.773" wide by .812" thickness, allowing the pattern to be machined sprung (laying horizontally flat) from four-quarter lumber. The attractive terminating profile is composed of a 7/16" tall vertical line on the top left, joined to a two tangent radius cyma recta and a 3/16" tall line that transitions into a 1-19/32" cove in the center, attached to a 45/64" radius ovolo with a 13/64" flat line above and a 7/16" broad segment on the bottom right side of the design. If you install the pattern upside down, it will become a supporting profile. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the inner profile parallel to the wall and ceiling; they also set the installed height at 3-3/8" tall with a projection of 3-3/8" wide. We offer a smaller 3-7/16" version of this lovely design you may want to review and consider, crown moulding 3.437" - 6.

Our precise cad drawings contain plenty of important information that will assist you during setup and milling of this detail. Our acrylic templates provide sufficient blend areas on the knives so you will never realize where one cutter begins or ends, these specific design features will substantially increase yield during the milling process.
