Crown Moulding 4-3/4" - 7

Crown Moulding 4-3/4" - 7

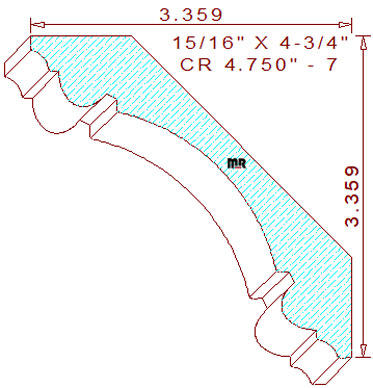

This appealing crown moulding 4-3/4" - 7 measures 4.750" wide by .937" thickness, necessitating the use of five quarter lumber for milling. The alluring symmetrical profile is comprised of a 2-11/64" cove in the center, connected to a 7/64" wide sunk fillet that transitions into a 9/16" wide half round circle, joined to a small 15/64" cove bordered by a vertical and horizontal line segment on the top and bottom of the design. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projections at a identical dimension of 3-23/64" tall and wide.

We offer a few other various sizes of the same lovely design for your review and consideration, crown 3.437" - 7, crown 3.469", crown 5.000" - 11, and crown 6.500" - 1. Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.750" / Depth of Cut = .611" (top knives.)

Thickness = .937" / Depth of Cut = .746" (right blades) & .746" (left cutters.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$40.00
$40.00
$40.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
