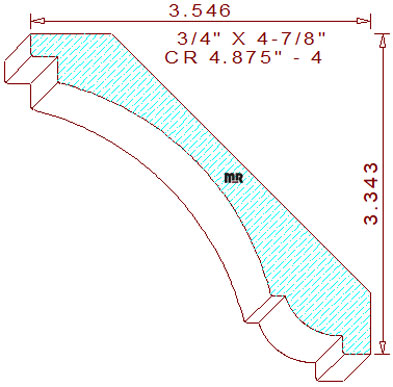

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-11/32" tall with a projection of 3-35/64" wide. Three high points in the design were purposely positioned on the same level plane to assure superior hold down conditions while milling the pattern on an industrial style moulder. From just an idea in one's mind, to reality in their home, our profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.
For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.
Width = 4.875" / Depth of Cut = .430" (top knives).
Thickness = .750" / Depth of Cut = .601" (right blades) & .458" (left cutters).
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.Copyright © Mirror Reflections Inc. All rights reserved.
