Crown Moulding 5-1/16" - 2

Crown Moulding 5-1/16" - 2

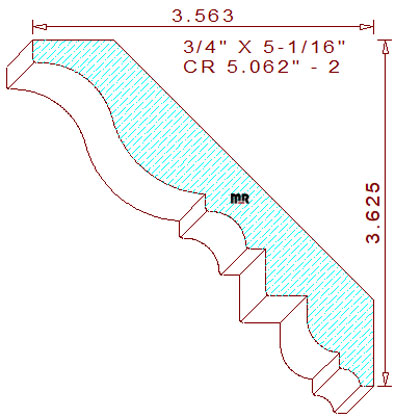

This embellished crown moulding 5-1/16" - 2 measures 5.082" wide by .750" thickness. The decorative ornate profile is comprised of a 15/64" tall vertical line joined to a two tangent radius cyma recta on top, connected to a 3/8" cove flanked by a small vertical and horizontal lines that transitions into a 7/16" wide by 1/2" tall square lines, attached to a 23/64" radius arc tangent off of a vertical line and a small 3/16" cove bordered by a 9/64" tall and wide lines at the bottom of the design.

The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height at 3-5/8" tall with a projection of 3-9/16" wide. Read our commentary about axial constant positioning for crown bevels, the article will help you dial this profile in axially on the first try when milling this detail provided the machine is axially calibrated. Three high points in the detail were deliberately positioned on the same plane, the radius arcs are below those planes by .015", this will eliminate any unsightly burnish marks left from the moulder pressure element. Our specialized design features will assure excellent hold down conditions while milling, providing the moulder pressure shoe is parallel to the machine bed plates.

For knife quoting purposes use the calculator below, we have added only the important measurements, just determine the cutters you need. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 5.082" / Depth of Cut = .333" (top knives).

Thickness = .750" / Depth of Cut = .599" (right blades) & .643" (left cutters).
