Crown 5-3/16" - 5
Crown 5-3/16" - 5

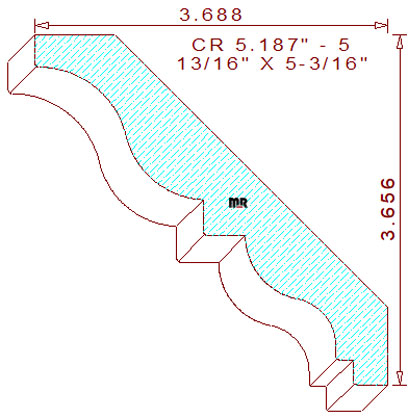

This well-designed 5-3/16" - 5 crown mould measures 5.193" wide by .812" thickness, authorizing the pattern to be milled sprung (laying horizontally flat) out of four-quarter lumber. The opulent terminating profile is composed of a 21/64" vertical line joined to a 15/16" concave semicircle tangent to a 7/8" convex arc creating the cyma recta in the upper left portion, attached to a 3/8" tall by 7/16" wide perpendicular lines in the center, merged with a two tangent radius cyma reversa that transitions into a 1/4" tall by 11/64" wide notch with a 3/8" wide flat line on the bottom right side of the design. The spring angles are fixed at forty-five degrees, these explicit back bevels keep the face side of the profile parallel to the wall and ceiling when installed, in addition to setting the positioned height at 3-21/32" tall with a projection of 3-11/16" wide.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.592
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.570
Top Cutter Head
Width: 5.187
Depth of Cut: 0.335
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$172.25
$128.25
(Template not needed)
$364.60
Not Needed
Total:
$665.10
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$181.75
$137.75
(Template not needed)
$388.35
Not Needed
Total:
$707.85
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$196.00
$152.00
(Template not needed)
$423.97
Not Needed
Total:
$771.97
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
