Crown Moulding 5-1/2" - 18

Crown Moulding 5-1/2" - 18

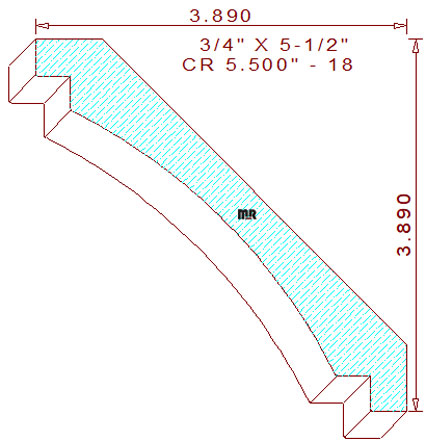

This crown/cove moulding 5-1/2" - 18 measures 5.500" wide by .750" thickness. The concave profile is composed of a 6-3/16" radius cove, attached to two 23/64" by 3/8" notched fillets with a 25/64" vertical line on top and a 25/64" wide horizontal line at the bottom. The spring angles are fixed at forty-five degrees, these specific back bevels set the installed height and projection at an identical dimension of 3-57/64" tall and wide.

Four high points in the design were intentionally positioned on the same plane, our specialized design features will assure optimal hold down conditions while milling the pattern on an industrial moulder. Need this profile template and a set of moulding knives quickly? We generally can have these cutters ground with any one of our premium quality high speed steel or carbide and shipped within twenty-four hours.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.500" / Depth of Cut = .326" (top knives).

Thickness = .750" / Depth of Cut = .492" (right blades) & .492" (left cutters), one template can be used for both sets of side knives.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
